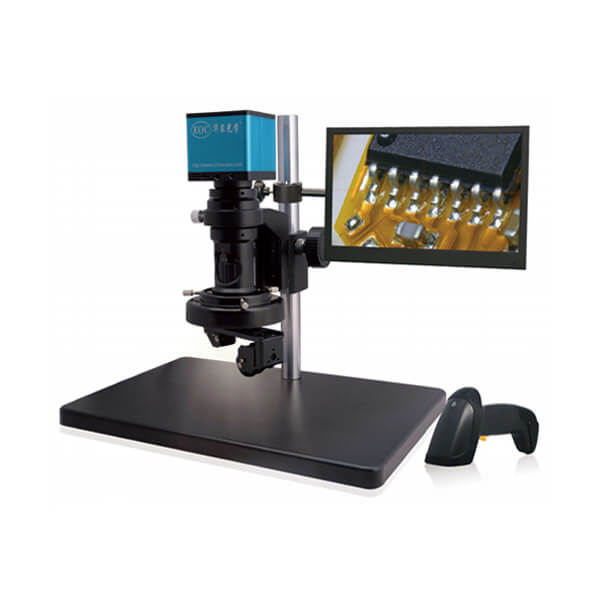

Functional application The system supports external scanning gun, which can be named and photographed with the information of barcode qr code after scanring, and can be sent to the MES system of the factory for storage and backup through local area network. Specifications Optical system infinite optical system with coaxial confocal and magnification limited function Zoom Ratio 1 : 7 Magnification 24x~160x Working distance 45mm Image sensor 1/1.8 Pixel 5MP Resolution 2560*2048 Frame 60fps Digital output HDMI Image memory U-DISK/Ethernet Base size 300*320*10mm Lifting range 300mm Focus range 45mm Illumination Ring LED Illumination Monitor 21.5″ Software function Photo storage, picture preview, statistics, annotation, line drawing, etc. Measurement function point, face, line, circle and other plane measurement Ethernet transmission function Transfer pictures and data, can connect with MES system Code Scanning External code scanning gun to save pictures with barcode / QR code information name XY-move platform Customized XY-move platform can be customized according to customers requirements Illumination LED transmission lighting, LED oblique lighting
